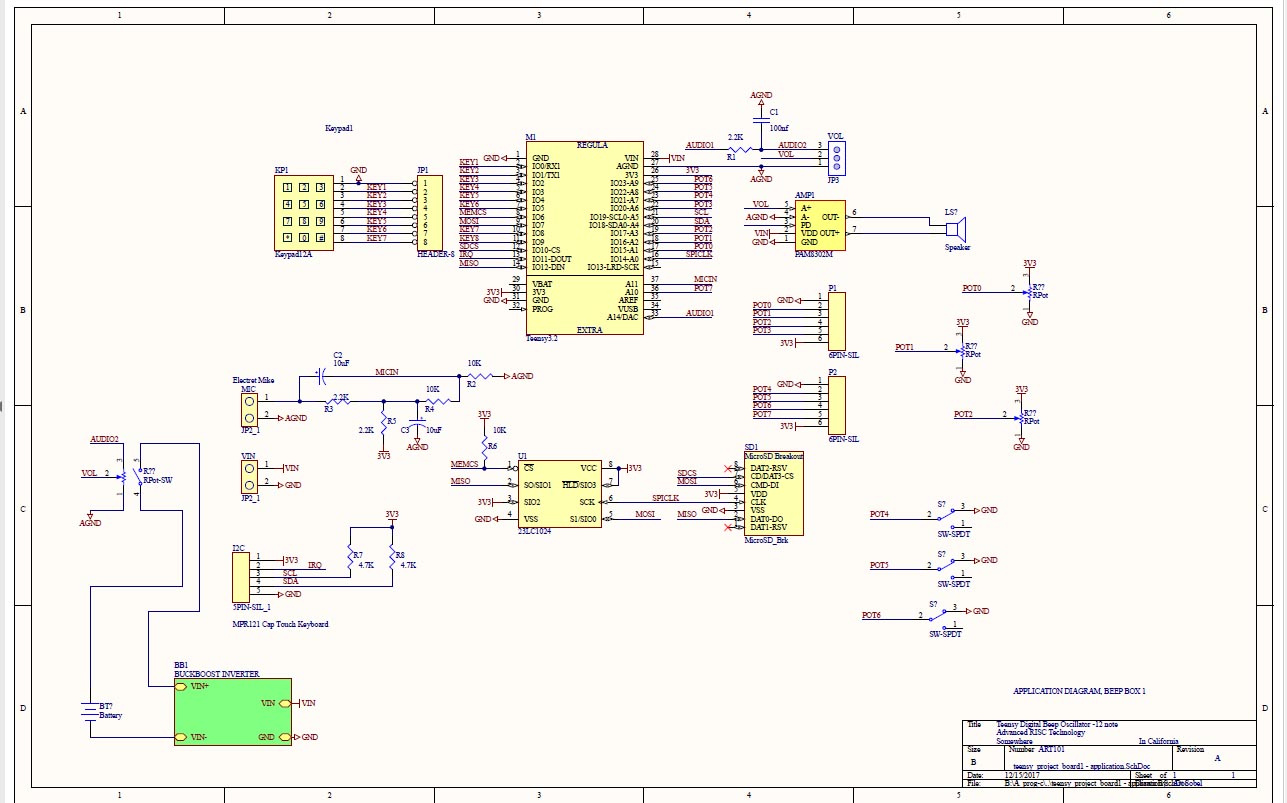

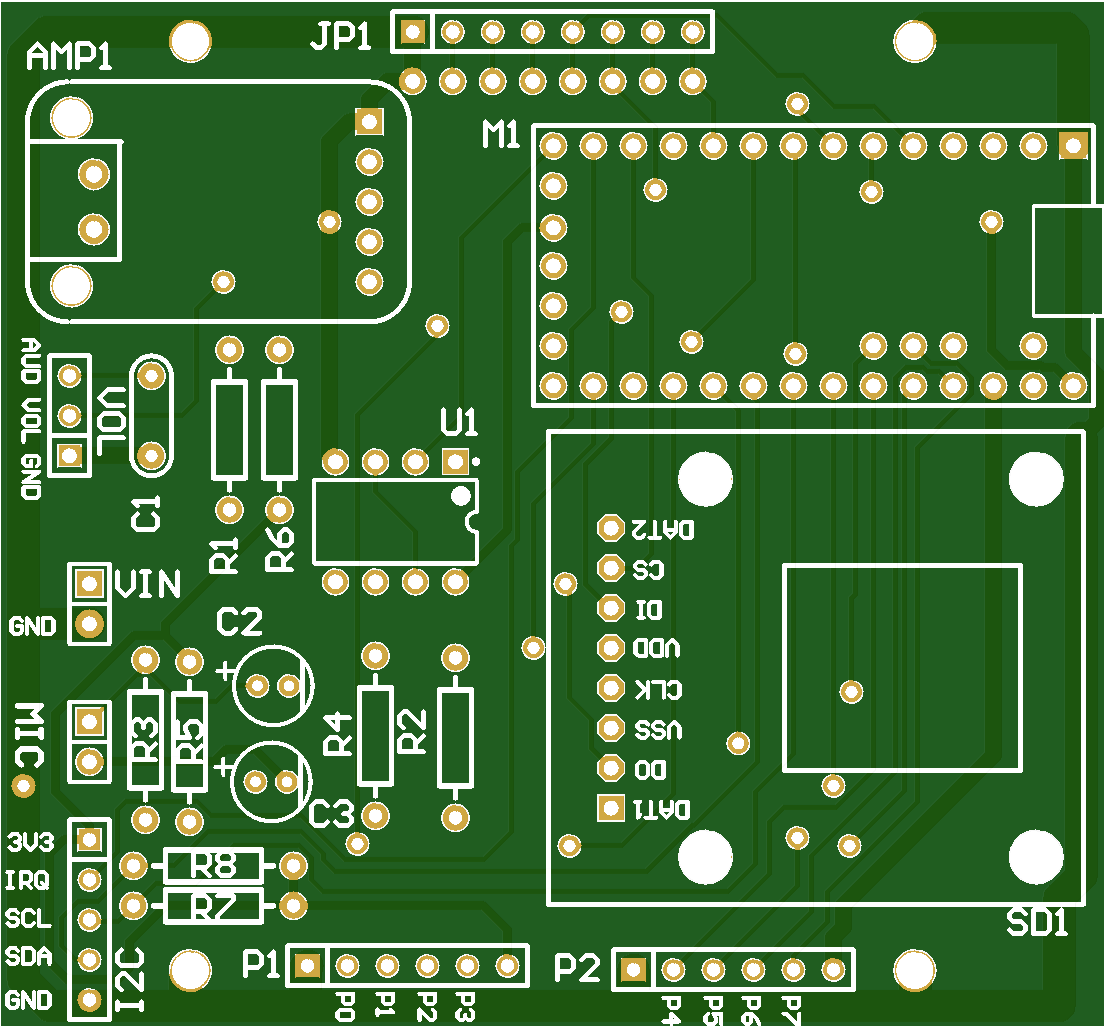

Teensy 3.2 Small Audio Board
Small Beep Board
| Bill of Material for Small Beep board | |||||
| Comment | PCB Footprint | Quantity | Components | DESC & LINK | Price |
| 100nf | RADCAP-0.2 | 1 | C1 | Capacitor | 00.044 |
| 10K | AXIAL-0.4 | 3 | R2, R4, R6 | RESISTOR | 00.04 |
| 10uF | RADCAP-5MM | 2 | C2, C3 | Capacitor | 00.19 |
| 2.2K | AXIAL-0.4 | 3 | R1, R3, R5 | RESISTOR | 00.04 |
| 23LC1024 | DIP8 | 1 | U1 | 1Mbit SPI Serial SRAM | 02.60 |
| 4.7K | AXIAL-0.4 | 2 | R7, R8 | RESISTOR | 00.04 |
| 5PIN-SIL_1 | SIP-5 | 1 | I2C | 5 Pin Single In line .1 Inch centers | |
| 6PIN-SIL | SIP-6 | 2 | P1, P2 | 6 Pin Single In line .1 Inch centers Surface mount | |
| HEADER-8 | SIP-8 | 1 | JP1 | 8 Pin Header | |
| JP2_1 | IDC-2 | 2 | MIC, VIN | 2 pin Jumper | |
| JP3 | SIP-3 | 1 | VOL | 3 PIN JUMPER | |
| Keypad12A | Keypad12A | 1 | KP1 | 12 position telephone type keypad. | 04.95 |
| MicroSD_Brk | MicroSD_Brk | 1 | SD1 | MicroSD Breakout Board | 01.15 |
| PAM8302M | PAM8302M | 1 | AMP1 | Class D Mono Amplifier 2.5 W max | 03.95 |
| Teensy3.2 | teensy32 | 1 | M1 | MK20DX256VLH7 Cortex-M4 Dev Board | 19.95 |
| teensy_project_board1 | PCB | 1 | PCBway W14701ASW3 | 05.00 |
