ESP32 Litebrite
LiteBrite Controller board
LiteBrite

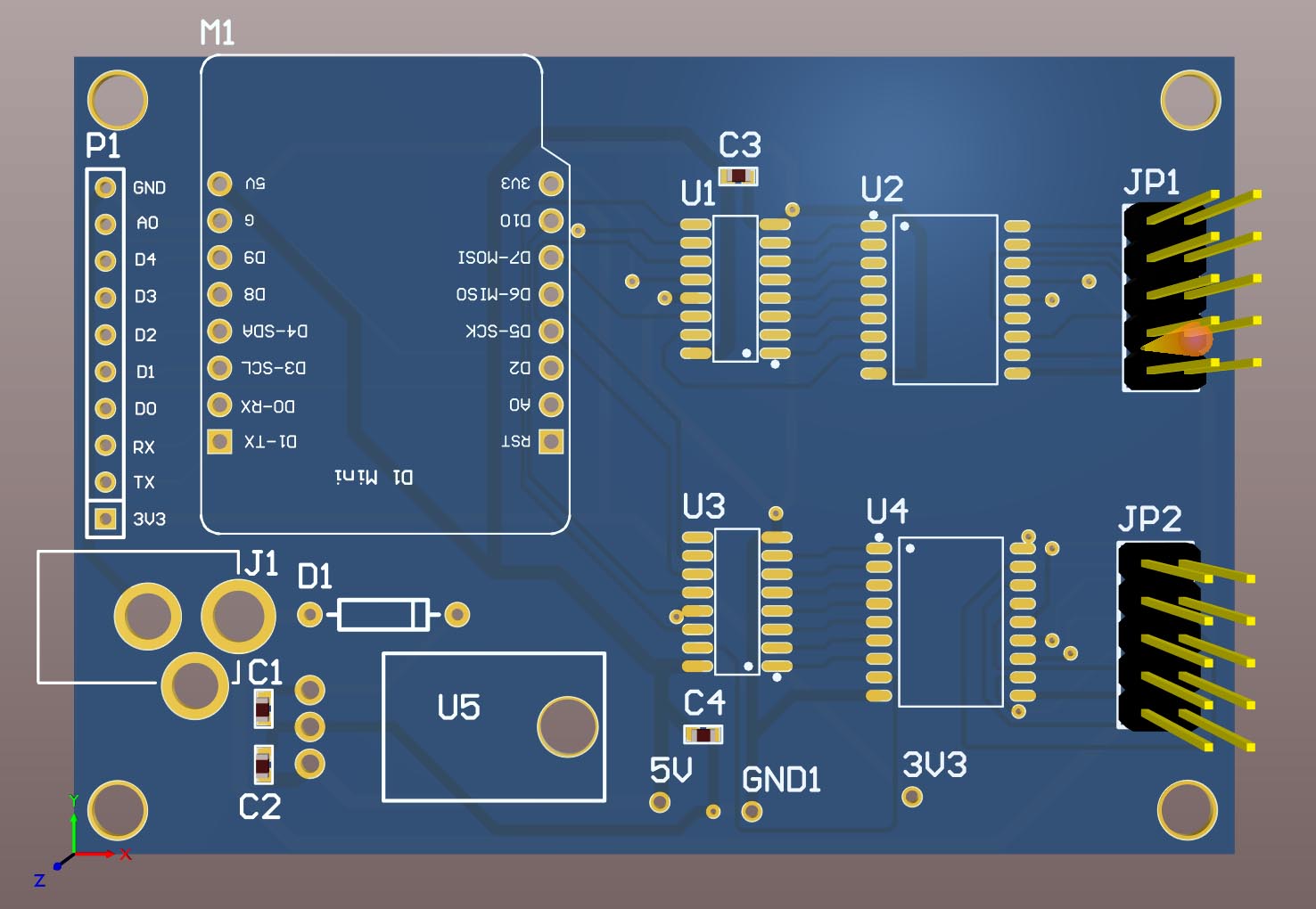

Litebrite Layout

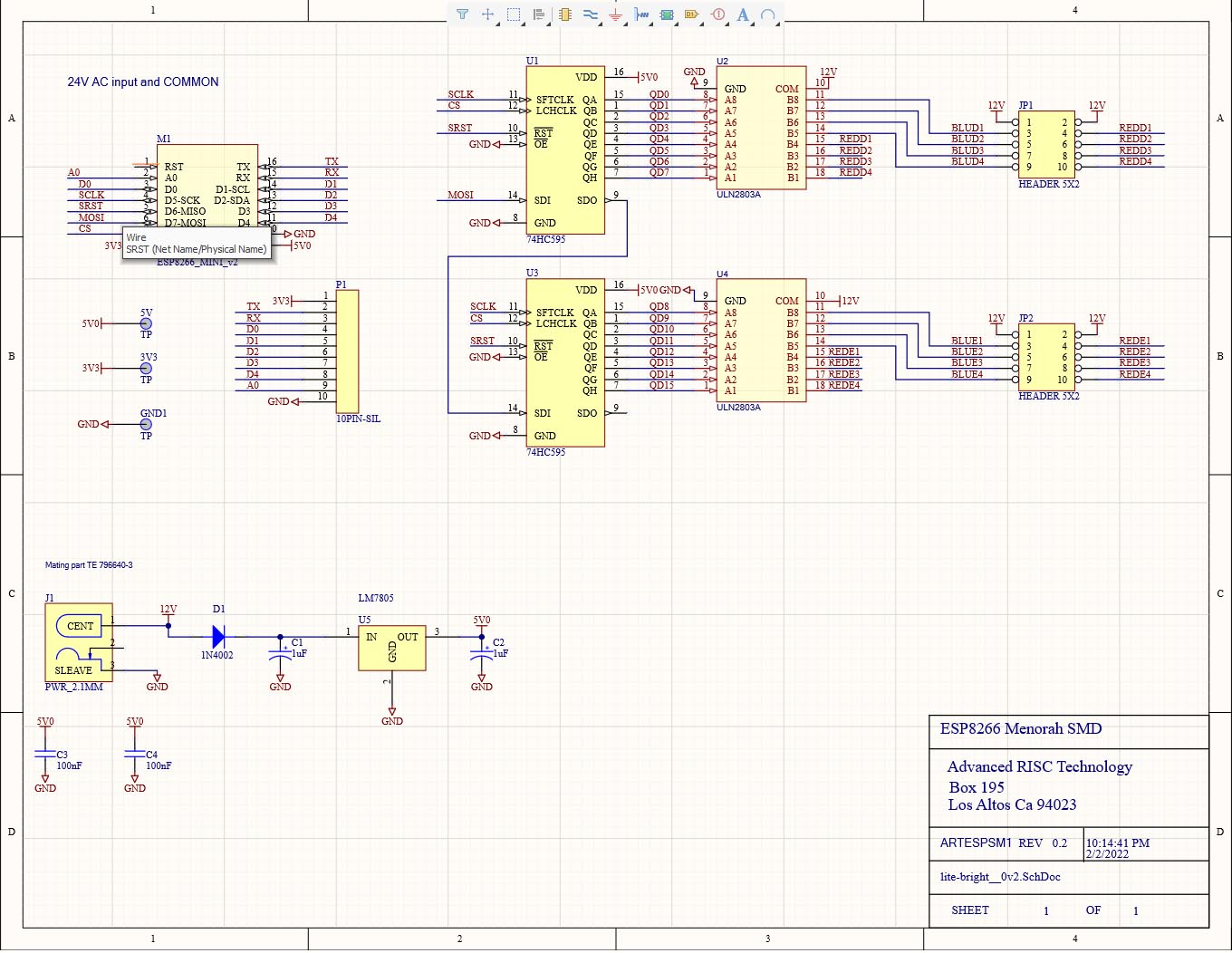

Litebrite Schematic
Litebrite Controller BOM
| Comment | Designator | Quantity | LCSC# |
| TP | 3V3 5V GND | 3 | |
| 1uF | C1 C2 | 2 | C15849 |
| 100nF | C3 C4 | 2 | C14663 |
| 1N4002 | D1 | 1 | C169542 |
| PWR_2.1MM | J1 | 1 | |
| HEADER 5X2 | JP1 JP2 | 2 | |
| ESP8266_MINI_v2 | M1 | 1 | |
| 10PIN-SIL | P1 | 1 | |
| 74HC595 | U1 U3 | 2 | C5947 |
| ULN2803A | U2 U4 | 2 | C845537 |
| LM7805 | U5 | 1 | C58069 |
