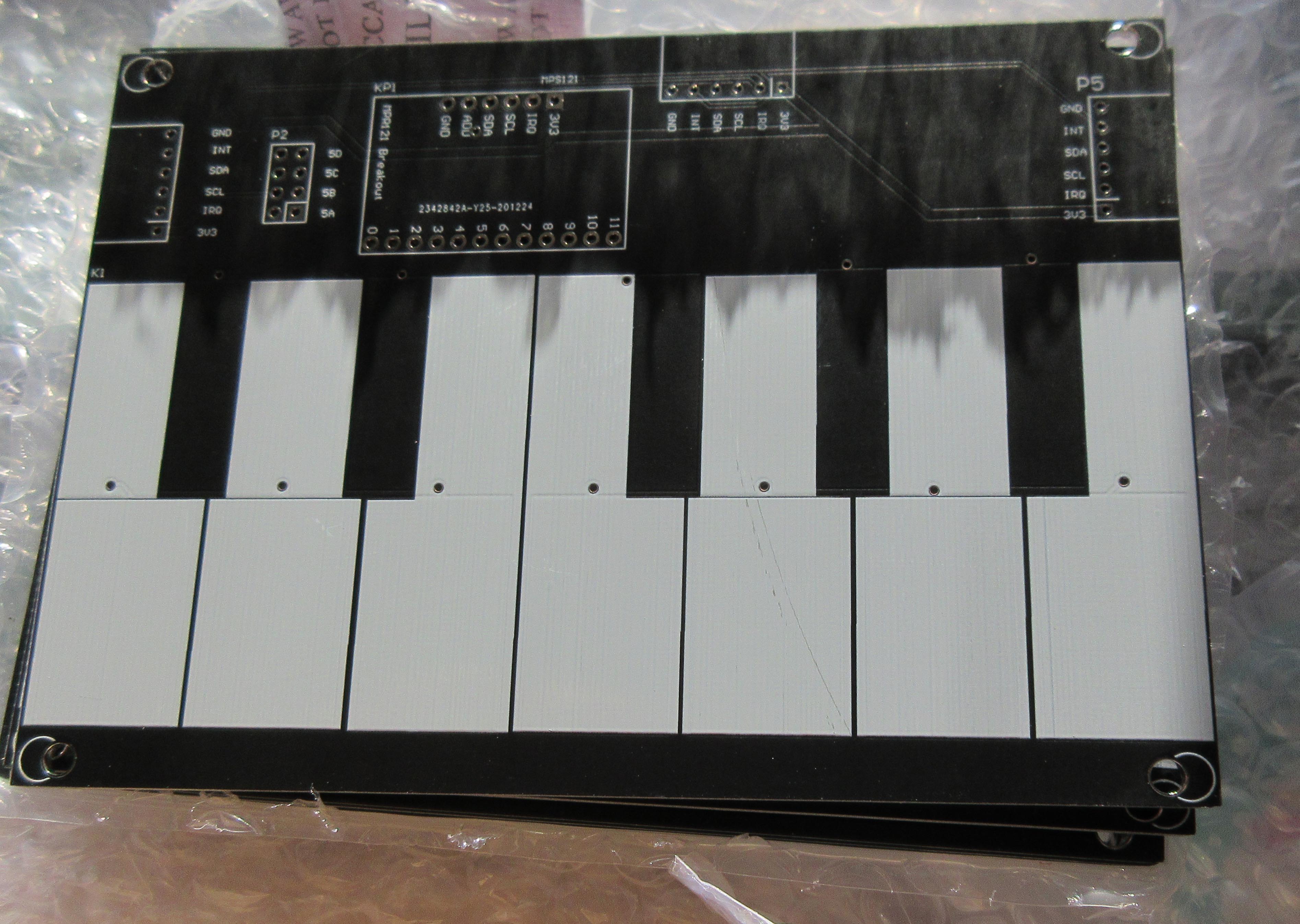

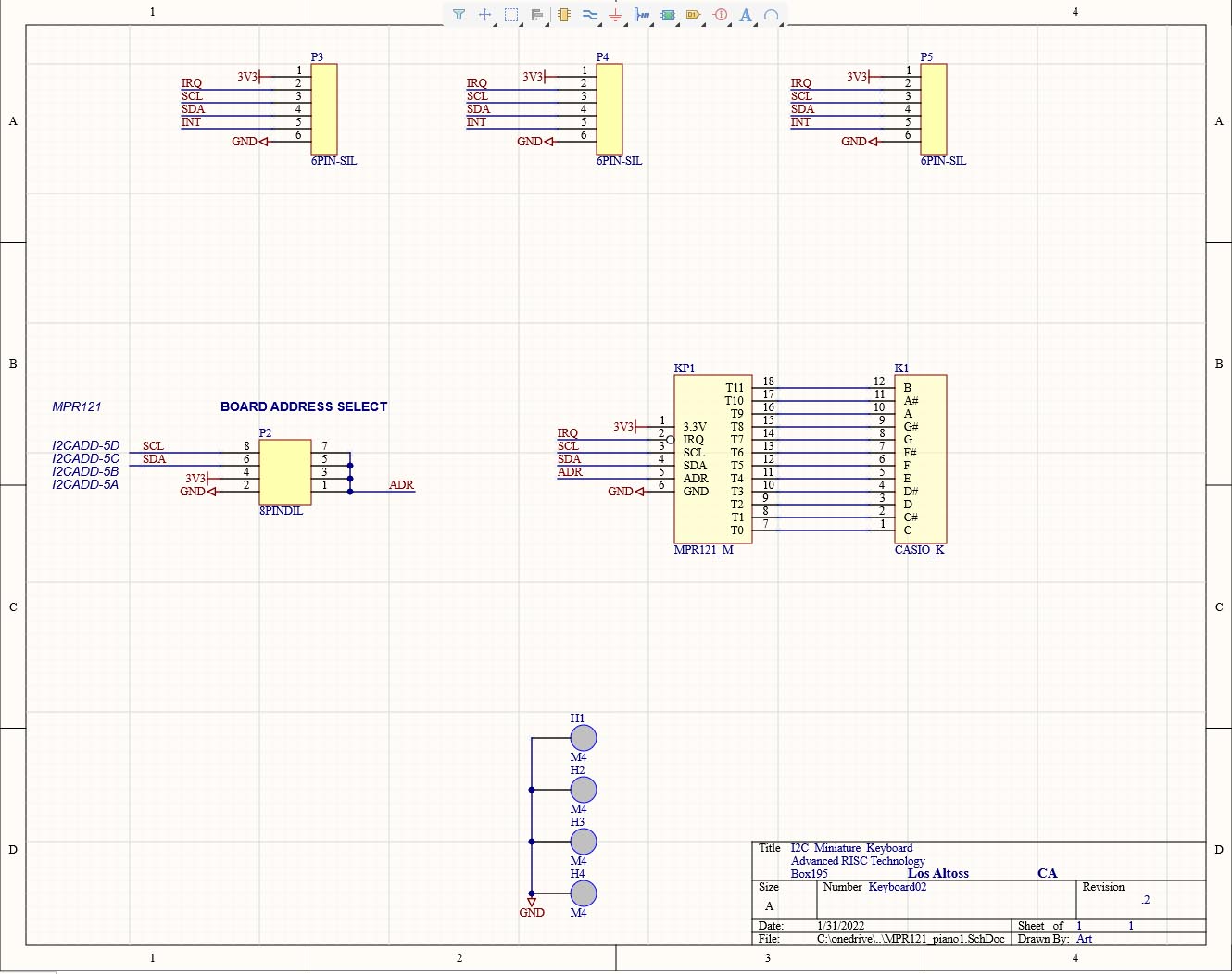

One Octave Rev B Keyboard |

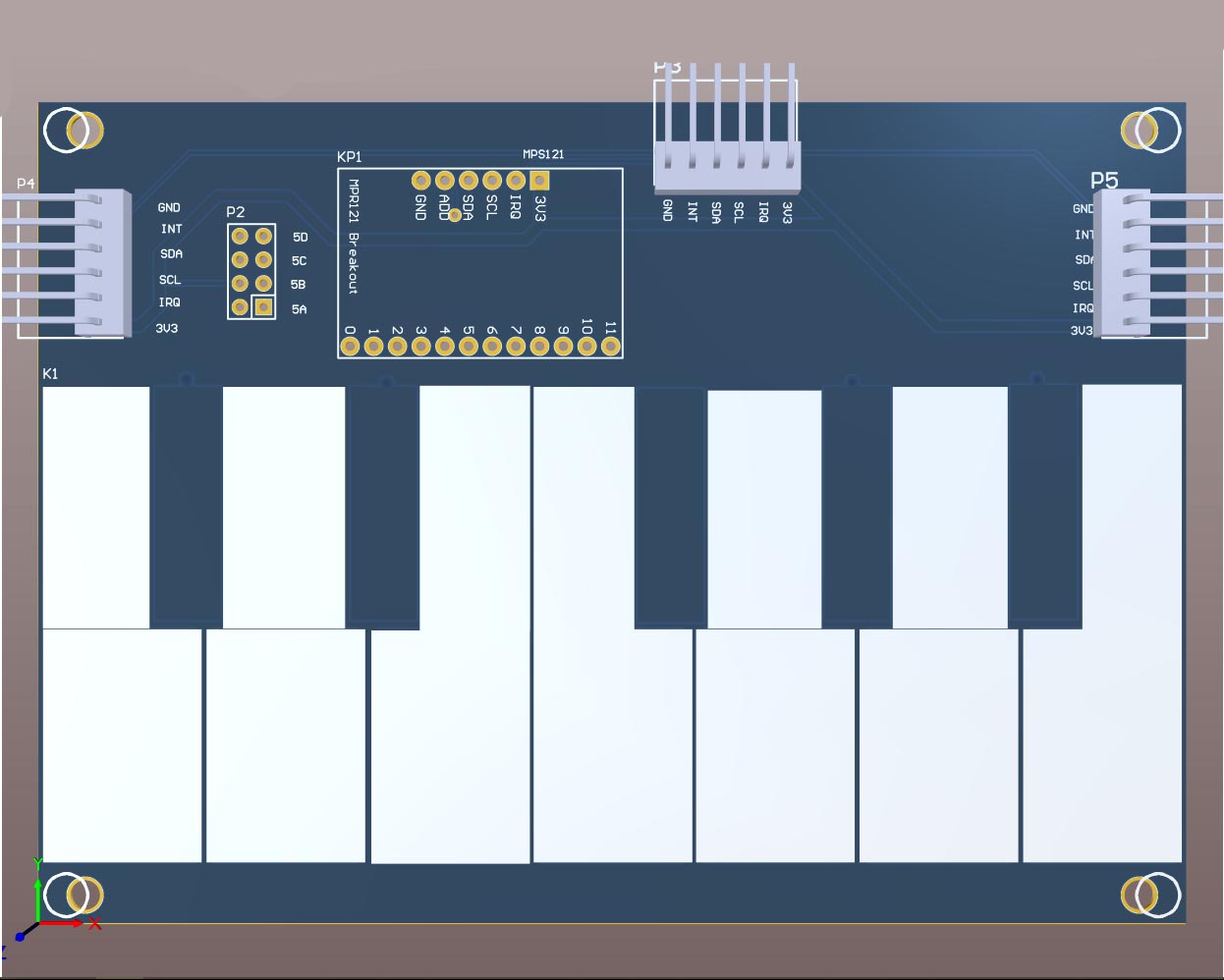

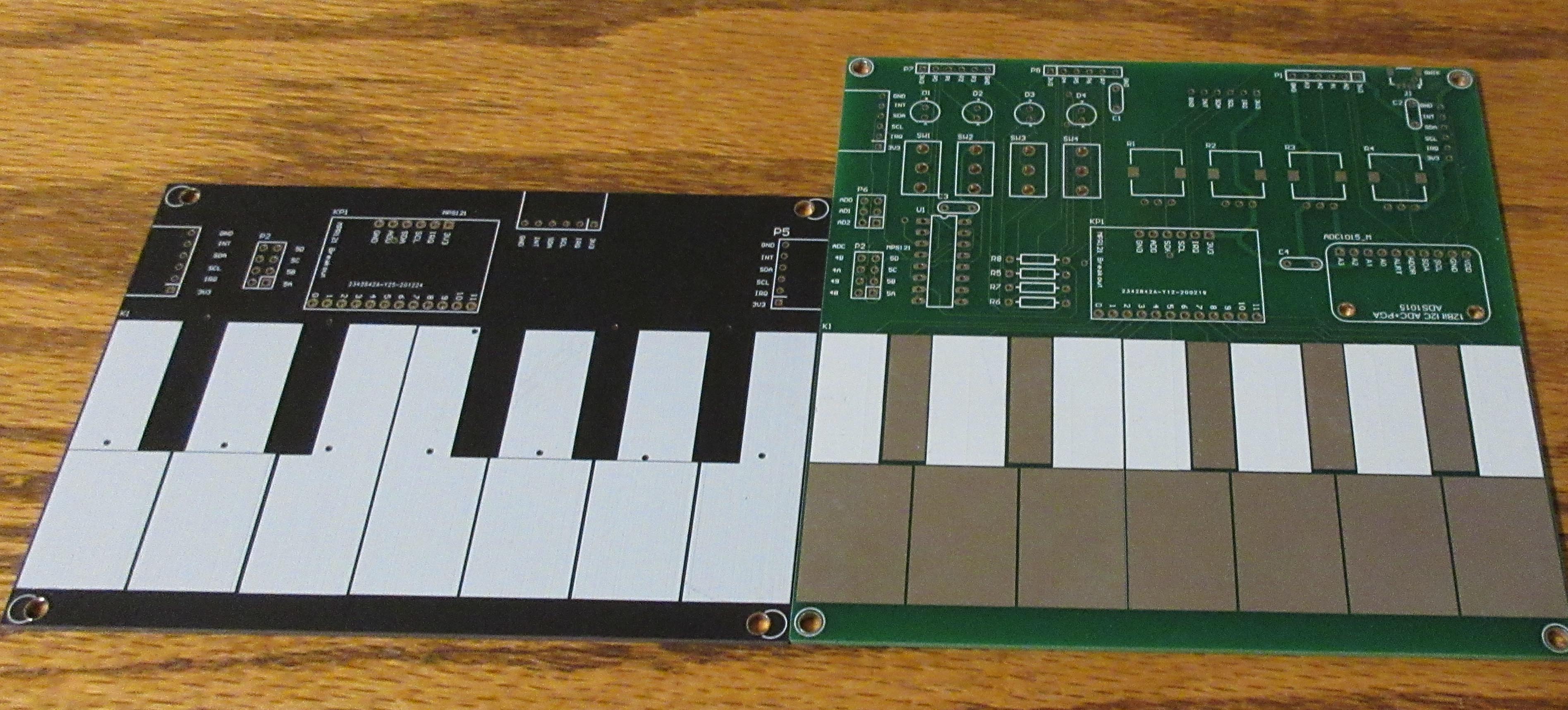

Rev B vs Rev A Keyboard |
One Octave Rev B Keyboard |
Rev B vs Rev A Keyboard |
Bill of Material for Touch Piano Keyboard | |||||
Comment | PCB Footprint | Quantity | Components | DESC & LINK | Price |
MPS141 | MPS141 Module | 1 | KP1 | Touch IC Breakout | 00.044 |
HEADER-8 | IDC-8 | 1 | P2 | 8 Pin DIL Header | |
JP2_1 | SIP-6RT | 2 | P3.P5 | 6 pin Right SIL Angle male header | |
JP3 | HEAD-6RT | 1 | P4 | 6 pin Right SIL Angle female header |
